Refilling HP 51645AE and C6615DE ink cartridges

1. Remove the cartridge from the printer.

2. Using a knife, carefully peel off the circular label from the underneath of the cartridge, to reveal a ball bearing.

3. Using a ball point pen or other suitable object push the ball bearing into the cartridge.

4. Take the bottle and push the needle into the cartridge taking care not to puncture the bag inside the cartridge.

5. Inject the ink slowly into the cartridge. An empty cartridge will take a whole bottle of ink.

6. When the cartridge has been refilled; squeeze the sides of the cartridge and at the same time push the ball bearing provided into the hole so that it blocks the refilling hole.

7. Put sticky tape over the ball bearing hole, wipe the print head and return to the printer.

8. Run the cleaning process through the printer software.

[Back to Top]

Refilling HP 51626AE and 51629AE and C6614DE ink cartridges

1. Remove the cartridge from the printer.

2. Using sticky tape cover the bottom of the cartridge but not the printhead.

3. Carefully drill a hole 3mm in diameter in the top left of the cartridge top (as shown).

4. Take the bottle and push the needle into the cartridge taking care not to puncture the bag inside the
   cartridge.

5. Inject the ink slowly into the cartridge. An empty cartridge will take a whole bottle of ink.


6. When the cartridge has been refilled push the bung provided into the refilling hole.

7. Remove the sticky tape from the bottom of the cartridge.

8. The cartridge now needs to be pressurised. Carefully hold the neck of an empty ink bottle and turn the needle in its sleeve anti-clockwise. This will remove the needle from the bottle. Squeeze the empty bottle into some tissue to catch any of the remaining ink. Hold the cartridge upside down and with the opening of the bottle over the centre hole of the cartridge. Squeeze the bottle, this will force air into the bag inside and re-pressurise the cartridge.

9. Sit the cartridge the right way up on the tissue provided. Ensure that the print head is not resting on the tissue as this will draw the ink out of the cartridge. Leave the cartridge to stand for a few hours.

10. Wipe the print head and return the cartridge to the printer.

11. Run the cleaning process through the printer software.

[Back to Top]

Refilling HP C1823DE, 51641AE, C6578AE and C6578DE ink cartridges

1. Remove the cartridge from the printer.

2. Using the screw eye provided push in the 3 dimples on the top of the cartridge.

3. Take a bottle and insert the needle into the correct colour sponge. Note that with the print head facing you, the colour sequence from left to right is cyan, magenta then yellow.

4. Inject the ink slowly, pulling back slightly as you inject, to expose the different parts of the sponge to the ink. Make sure that you have stopped injecting, before reaching the top of the sponge or the colour make leak into another sponge. Remember; a little ink goes a long way! The cartridge takes approx 12ml of each colour to fill. Only inject a half of the bottle each refill, and allow to stand while the ink soaks in the sponge.

5. Wipe the printhead, and return to the printer.

[Back to Top]

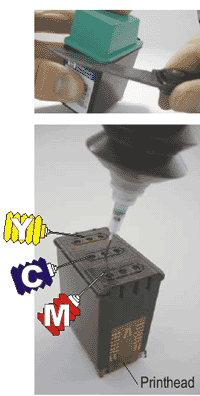

Refilling HP 51649A, 51625AE and C1816A ink cartridges

1. Remove cartridge from printer.

2. Carefully using a knife, prise the cap from main body of the cartridge.

3. Once the cap has been removed, the sponges are exposed. Take a bottle and insert the needle into the correct colour sponge. Note that with the print head on the right, the colour sequence from left to
   right is yellow, cyan then magenta.

4. Inject the ink slowly, pulling back slightly as you inject, to expose the different parts of the sponge to
   the ink. Make sure that you have stopped injecting, before reaching the top of the sponge or the colour make leak into another sponge. Remember; a little ink goes a long way! The cartridge takes
   approx 8ml of each colour to fill. Only inject a third of the bottle each refill, and allow to stand while the ink soaks in the sponge.

5. When the cartridge is full, put the cap back on and attach with sticky tape. 6. Wipe the printhead, and return to the printer.

6. Run the head cleaning process through the printer software.

[Back to Top]

Refilling HP C6656A, C6657A ink cartridges

1. Remove cartridge from printer.

2. Remove the identification label from the top of the cartridge.

3. Assemble the syringe and needle, pierce the bottle seal and fill with the correct ink colour.

4. Insert the needle into the appropriate fill hole and push down into the cartridge. Ensure you are filling the correct colour chamber with the correct colour ink.

5. Slowly inject the ink. When the ink appears a the filling hole, pull back the syringe plunger slightly to remove the excess ink. Blot the printhead with absorbent material until it stops dripping before moving onto the next colour.

6.  Do not replace the identification label.

7. Ensure the printhead has stopped dripping before returning the cartridge to the printer. Operate the printers cleaning cycle.

8. Clean the syringe and needle thoroughly with water for future use.

[Back to Top]
